FM 205

Pinch Force Measurement System for Powered Window Lifters

Safety ensured by Pinch Force Measurement

The FM 205 is an electronic force measuring system for powered window lifters. Typical use includes R+D and production testing in the automotive industry. The FM 205 is characterized by its ease of use for repetitive measurements. According to the requirements of different standards a large variety of spring stiffnesses is available. It is also increasingly used by technical safety agencies. Combining rugged construction with precision, the advanced mechanical design delivers exact measurements, even after years of service in an industrial environment. Fast and easy performance of repetitive measurements is an important aspect of standard test scenarios.

Drive Test has responded to this requirement by developing software which streamlines the measurement process and drastically reduces documentation effort. Measurements can be downloaded to a PC, analysed, exported and documented with a minimum of user interactions. Our PinchPilot software provides also interface like Microsoft® DLL or National Instruments® LabVIEW for remote control in automated environments.

Quotation request
Download Factsheet
  • Applicable standards – directive 2000/4/EG, US Standard FMVSS 118
  • Precision measurements – uses frictionless guides and a single point (platform) load cell
  • Robust construction – manu­factured from durable aluminium for long service life in industrial environment
  • Ease of use – single­-button operation or remote control via Microsoft® DLL interface or National Instruments® Labview library
  • Professional software – Pinch­Pilot offers complete functionality
  • Different spring stiffnesses available – 2, 5, 10, 20, 65 N/mm
  • Complete delivery – all compo­nents packed in high-quality transportation case

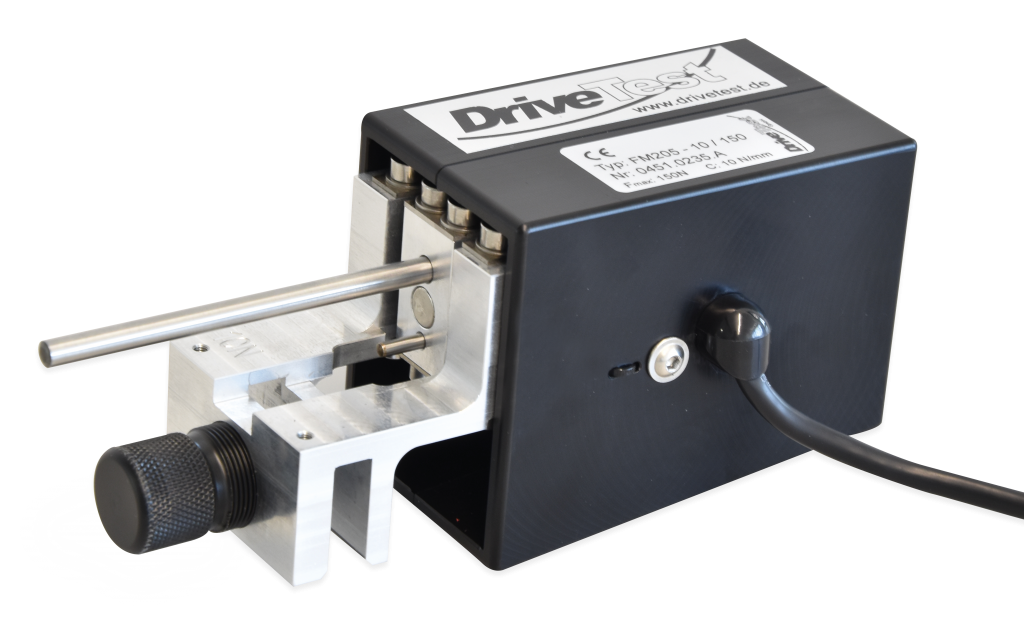

Sensor FM 205

  • Force initiation: one-sided
  • Range: 0–260 N
  • Accuracy: +/– 3 N (0–100 N) or +/– 3 % (>100 N)
  • Available spring stiffnesses: 2, 5, 10, 20, 65 N/mm
  • Gap width: 25 mm/ 30 mm
  • Area: 5 x 80 mm
  • Force sensor: Strain Gauge Bridge
  • Size: ca. 175 x 75 x 57 mm
  • Weight: ca. 400 g

Display unit SEB2.2

  • Data logging module (Display unit SEB2.2) with LCD display, LED states, button and USB interface
  • Optional PC controlled measurements
  • Lithium Polymer battery
  • Onboard real time clock
  • Storage for approx. 100 measurements
  • Sensor and PC interfaces
  • Display of peak force and effective force
  • Pass/ fail evaluation OK/not OK

Spacers (optional)

  • Spacers for different gap widths (description below)
  • Ease of use, fast mounting and dismoun­ting, no tools required
  • Robust construction, low weight
  • Made from durable POM

Software PinchPilot

  • Multi-­Language (DE, EN, IT, FR, ES)
  • Graphical display of force vs. time
  • Calculation of relevant parameters
  • Assessment with respect to different guidelines/ standards
  • Support for user defined standards
  • Printed reports
  • Data export (Excel, CSV, PDF)

Available items:

  • FM 205-10-150 (standard configuration)
    Stiffness: 10 N/mm
    Fmin: 0 N (25 mm)
    Fmax: 150 N (5 mm)
  • FM 205-05-100
    Stiffness: 5 N/mm
    Fmin: 0 N (25 mm)
    Fmax: 75 N (10 mm)
  • FM 205-02-50
    Stiffness: 2 N/mm
    Fmin: 0 N (30 mm)
    Fmax: 50 N (5 mm)
  • FM 205-20-200
    Stiffness: 20 N/mm
    Fmin: 0 N (25 mm)
    Fmax: 200 N (15 mm)
  • FM 205-65-260
    Stiffness: 65 N/mm
    Fmin: 0 N (25 mm)
    Fmax: 260 N (21 mm)

Spacers (optional):

  • Spacer 25 mm:
    height: 25 mm
    area: 4 x 80 mm
  • Spacer 75 mm:
    height: 75 mm
    area: 4 x 80 mm
  • Spacer 125 mm:
    height: 125 mm
    area: 4 x 80 mm
  • Spacer 175 mm:
    height: 175 mm
    area: 4 x 80 mm
